The Contorted Lodgepole: A Poet’s Tribute

My poet’s tribute to this one tree and many other remarkable contorted lodgepole pine trees is twofold: it is made as both a writer and as a tree art furniture maker and sculptor.  These two photos are favorites, and will be included in a book-length tribute that I’ve been working on since when these photos were taken.

jack-with-the-swans-neck-pine-color-1

One summer afternoon in the early 1990s, sitting in a stand of lodgepole pine trees, taking notes and making sketches of this solitary and remarkable “Swan’s Neck” tree trunk.

swans-neck-pine-philipsburg-bay-color-1

I also laid down with my camera at the base of the tree, wanting to document both the tree’s contortion and its curving return to uprightness, straightness, and centeredness over its original vertical axis–truly remarkable!

Advertisement

“Remarkable” Trees

This post introduces two books I’m engaged with, exploring their relevance to the tribute I’m writing about the contorted lodgepole pine trees. Both books are making me wonder what it is that makes these pines also “remarkable”?

The first is Remarkable Trees of the World, by Thomas Pakenham (W.W. Norton & Company, New York & London, 2002).  It features individual trees that are gigantic, ancient, incredibly shaped, famous, legendary, and monumentally significant.  The text is engaging and the photography is magnificent.  I ask myself, “How can the pine trees I work with also be considered remarkable, especially in comparison with the remarkable trees of the world?”

The second book is The Hidden Life of Trees: What They Feel, How They Communicate, Discoveries from a Secret World, Peter Wohlleben (Greystone Books, 2015)

In a word, this book takes a uniquely “psychological” approach to the remarkable lives of trees–their individual and social behaviors, their moral character as they make choices, and follow an innate awareness and the guidelines of their “etiquette manual”.  I’ve never read a book that takes a psychological and moralistic approach to the lives of trees (both deciduous and evergreen)–an approach also supported by numerous scientific studies and documentation.

Each book has expanded my sense of the possibilities for my tribute to Pinus contorta var. latifolia (Rocky Mountain lodgepole pine).

The challenge is to edit my voluminous ruminations–observations, questions, and opinions–about their physical, sculptural tree trunk shapes, and their figurative significance as symbol, metaphor, and allegory.

Until my next post, I’ll close with a recommendation for anyone who cares about trees: check out these two books.



“My Tree Art Appreciation”

Our Virginia City and Twin Bridges homes are partially furnished with my tree art. In this post I want to share a brief sampling of the pieces, and express my appreciation of living with them.

This first photo is of a grouping in our Virginia City home.  I had the Old Faithful Inn’s lobby in mind when I made the bench and coffee table.  To the right is a tree art sculpture named “The Pagan Dancer.”

a-tree-art-furniture-in-vc-house-bench-coffee-table-sculpture-1

a-tree-art-furniture-in-vc-house-chairs-mushroom-table-coat-rackThe door on the right is the main entry to the home, next to a combination chair and coat/hat rack.  Two arm chairs share the “Magic Mushroom Table’.  All of these pieces were also designed with the Old Faithful Inn lobby in mind.

a-tree-art-furniture-in-vc-house-upstairs

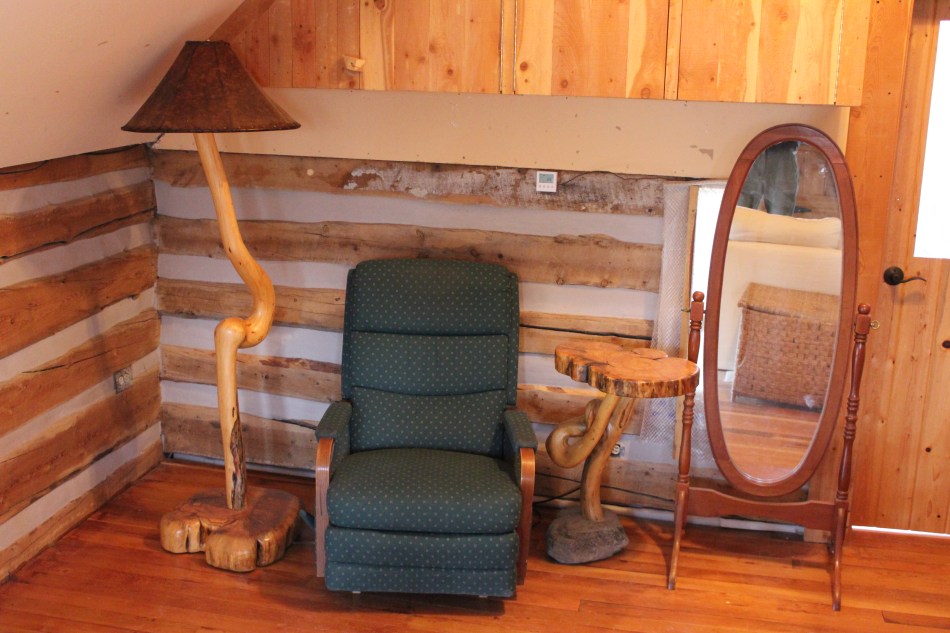

Upstairs in our Virginia City home, there’s a “poet’s corner”–a simple, but inspiring, arrangement of two favorite tree art pieces.tv-sculpture-1
This is my most appreciated piece of tree art sculpture.  The contortions of the tree trunk are the most gracefully tortuous I’ve ever seen (and most inexplicable).  The base is a stone found in Virginia City and drilled to suggest the natural phenomenon of trees growing out of solid rock.  It sits alongside the TV on the top shelf of the entertainment center.
office-table-lamp

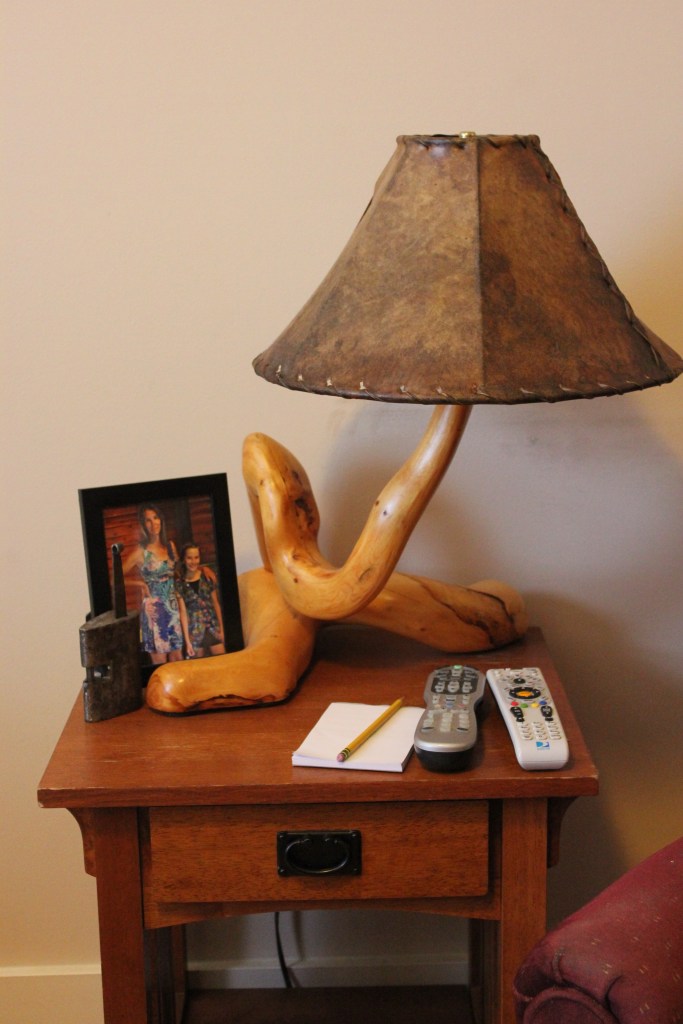

The tree shapes in this table lamp impress me, as does its cantilevered balance.  It sits next to a TV chair, with a favorite portrait of wife Kristin and daughter Ruby, and an iron lock and key, hand forged in Mongolia, given to me by Kristin as a birthday present.  So … lots of treasures nearby!
%22straight-crookedness-1
Here is our good dog, “Buster”, ruminating on “the straight crookedness of a good walking stick.”–in the words of Robert Frost.

Architectural Tree Art: A Handrail Project

October 29, 2016

INTRODUCTORY REMARKS …
After two years of not adding a post to this blog, I felt a need to return to it, to document the tree art railing project.  But I also had a sense of digital intimidation and resulting stress.  I also felt an uneasy concern about justifying all the time and energy it takes both to prepare and to publish so many photos and so much text. Then I found myself questioning the worth of doing it.

But, I appreciate the opportunity to practice my writing skills, in preparation for the possibility of someday completing a book-length manuscript about the remarkably contorted lodgepole pines, and my making of tree art.

(I want to add the fact that I had already completed a version of this post–many photos and 500 well-written words–a few days ago   I was pleased with the process until, when I pushed the “publish” button, the post vanished into cyberspace, and no amount of technical support could find it.)

Finally, following some general comments on design, materials, and workmanship, this post features a lengthy series of annotated photos.

DESIGN …
The handrail project is an example of what I call “architectural tree art,” as distinguished from “tree art furniture and sculpture.”  I first made that distinction out of an appreciation of the Old Faithful Inn’s architectural use of contorted lodgepoles.  (I have published an essay on my admiration for the inn’s architect, Robert Reamer, and the carpenters/tree artists who implemented his designs.)

Our house in Virginia City, Montana, has a wraparound greenhouse/glassed-in porch, with an interior deck and staircases, in need of handrails for over ten years.  Since it had been a couple of years since I made any tree art, I decided to design handrails both out of necessity and an urge to add a feature  of architectural tree art.

MATERIALS …

As some of the accompanying photos show, the unfinished greenhouse is also serving as a storage space for a variety of contorted lodgepole pine tree trunks.  From them, I selected certain “motifs”– “swan neck”, “loop-around”, “spiral “,  “forked 4”–for use as posts and lower rails.  All of these tree trunk shapes are naturally grown as each tree has outgrown adversity of some sort, and regained its original uprightness, straightness, and center of gravity!
For the top rails I used salvaged pieces of the original 1871 log house wood chinking, which had been removed in 2004 when the lap siding was taken off to reveal the log structure.  I liked the idea of combining the historic lumber with the contorted trees.

CRAFTSMANSHIP/WORKMANSHIP …

As with the making of tree art furniture and sculpture, an essential challenge comes with choosing types of joinery that accomplish both structural strength and an overall, flowing sculptural unity.

I used the following five types of joinery: cylindrical mortise and tenon; post and socket; mate-cut butt joint; scribed notch; and  half-lap.  Each of the joints were reinforced with log screws.

Some of the photos show matching pairs of  “position-key marks” on each of the joint’s components.  These marks are necessary to guide the repositioning of pieces that have been  separated during fitting.  (See photo below.)

A special note of thanks to my quasi-apprentice, Drew Xanthopoulos, for serving as a human railing clamp, and a supple ratchet operator inserting the long lag screws.

The project will remain unfinished for awhile.  At some point I will complete the cosmetic work, including filling, shaping, sanding, and staining.

ANNOTATED PHOTOGRAPHS:

2-greenhouse-deck-railings-2

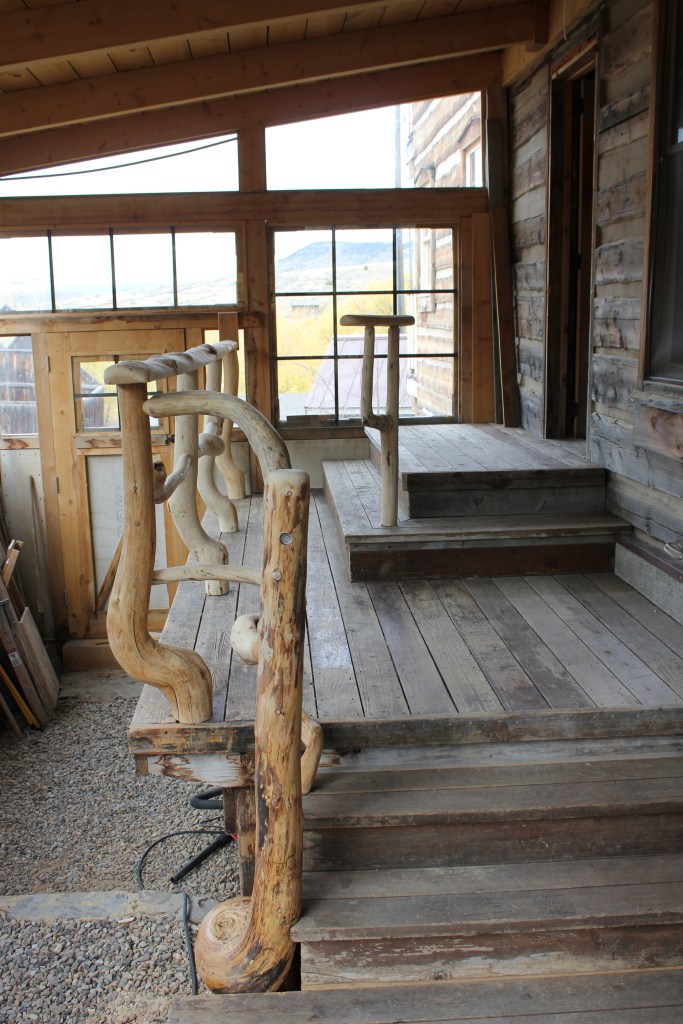

T
his view shows the entire deck and handrails, as approached from the front, inside of the greenhouse.  The  log house’s exterior door opens to the deck’s upper landing, and the greenhouse exit door is on the left below the deck.

1-greenhouse-deck-railings-1
T
he bottom staircase edge is off-set from the main deck surface, presenting a safety concern.  Selecting the three posts and two handrails to make a curved and descending handrail was a structural,  design, and joinery challenge.

3-greenhouse-deck-railings-3
T
his view is from the back (north) end of the greenhouse, showing the repeated “motifs” of the posts (swan neck) and of the lower rails (loop around).  The stacks of contorted lodgepole pine tree trunks in the background provided the inventory to select the handrail components.

4-greenhouse-deck-railings-4
T
he deck framing and surface are salvaged redwood.  The top handrail is made of two pieces of lumber that served as original wood chinking between the house logs (built in 1871.)  All of the posts appear to be sitting on top of the deck (which they are), but they also are penetrating through the deck surface and are secured underneath with 1/2″ x 7″ lag screws to the deck’s substructure.  (See photo below).

6-greenhouse-deck-stepdown-%224%22-railing
T
his short handrail section makes it easier and safer to descend from the upper landing.  I like its freestanding simplicity and strength.  The bottom of the “forked 4” post extends down six inches into a cylindrical socket drilled into a pair of staircase joists–a variation of the cylindrical mortise and tenon joinery.

11-greenhouse-deck-railings-underside-framing-view-post-lag-screw-detail-2
The bottom of each deck perimeter post was shaped into a cylindrical tenon–three inches in diameter, one and one-half inches long–with a square (not tapered) tenon shoulder.  The shoulder sits flat on the deck surface, so that the outside circumference of the post also covers the three inch mortise (i.e., the hole or socket).  The above photo shows the joists and blocking underneath the deck, and how the post is secured tightly to a framing block by a seven inch lag screw that penetrates deeply into the bottom end grain of the post (also seen above the deck in this photo.)

8c-greenhouse-deck-railings-tenon-in-post-post-in-top-rail-socket-2

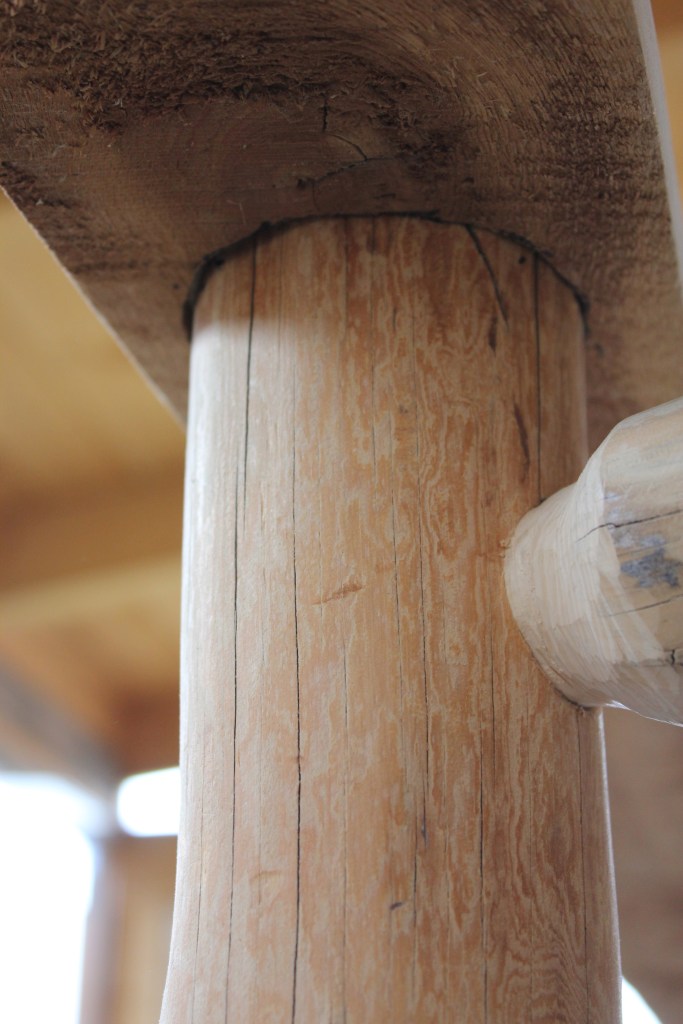

After cross-cutting the posts to a uniform height, and plumbing and aligning them in a row, I laid the flat side of the top rail on the row of post tops and scribed an outline circumscribing the circumference of each top onto the underside of the top rail.  Then, using a router, I created a half inch deep socket to receive each post top.  When the top rail was in place, including a half lap joint over one of the posts to connect the two pieces, I secured the rail with log screws.
8e-greenhouse-deck-railings-top-rail-half-lap-joint

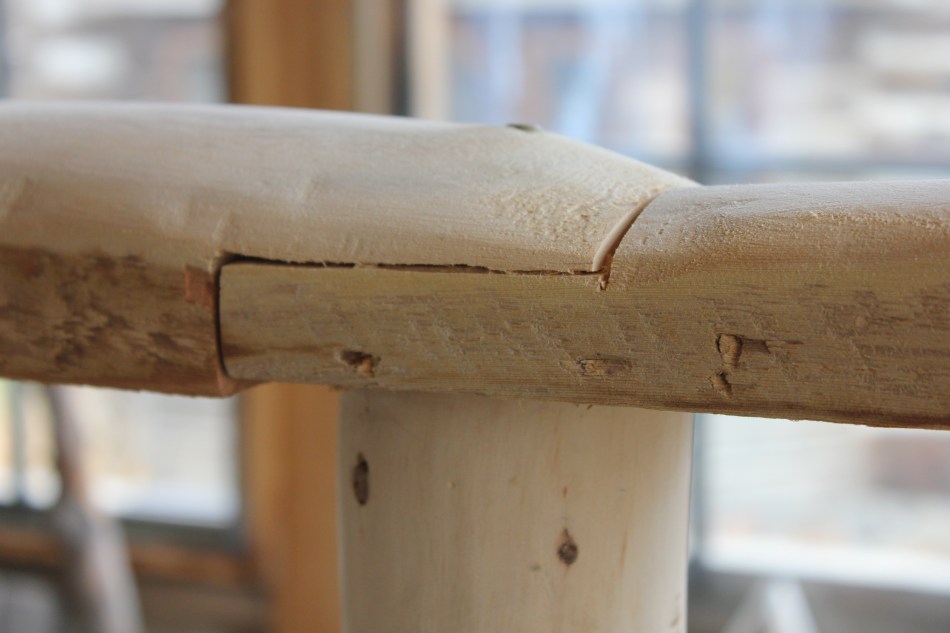

T
he top rail length required that I use two pieces of the wood chinking, so I created this crude but strong half-lap joint over the post.  The bottom half piece also has a half inch deep socket to accept the post top.  The joint will be further shaped and cleaned up in the finishing process.

10b-greenhouse-deck-railings-post-rail-mate-cut-detail-2

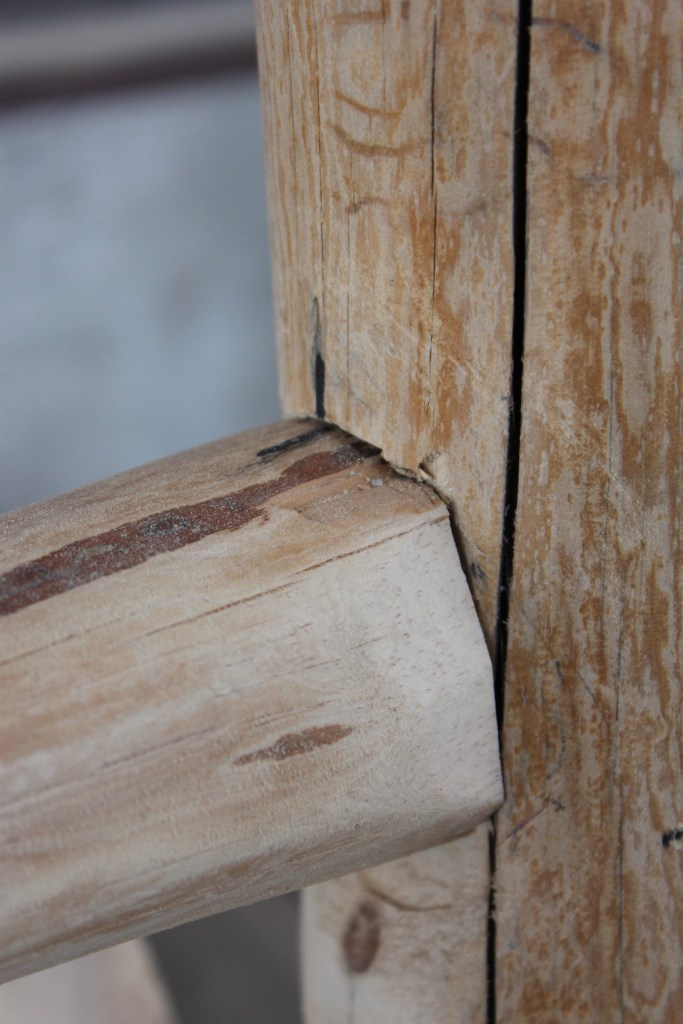

I
n this photo and the next, are examples of a “mate-cut butt joint.”  This joint is named for the fact that, after many preliminary saw cuts, the saw blade actually cuts both surfaces of the joint –the end of the rail and the side of the post– with each of many strokes.  Note the pair of black lines at the top of the joint.  As noted above, I call them “position match marks.”   The mate-cut joint will only realign correctly one way.

10a-greenhouse-deck-railings-post-rail-mate-cut-detail-1

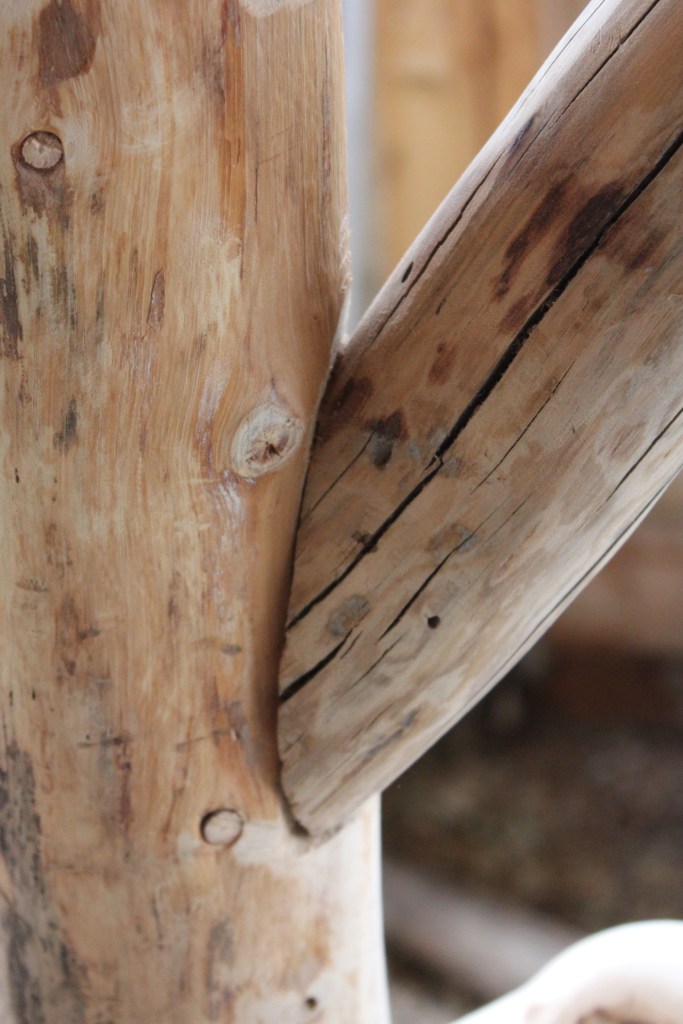

As part of the finishing process, the joint will be “sculpted” to flow together.

In Conclusion …

In the process of creating this post, I have realized that the essential values of doing it are intrinsic.   And that is true of most of my poetry (“makings” that also include creative writing and playing guitar and harmonica).  Having said that, I want to add a note of thanks to anyone (in an invisible audience) who might find something here of value.

Thank you …!

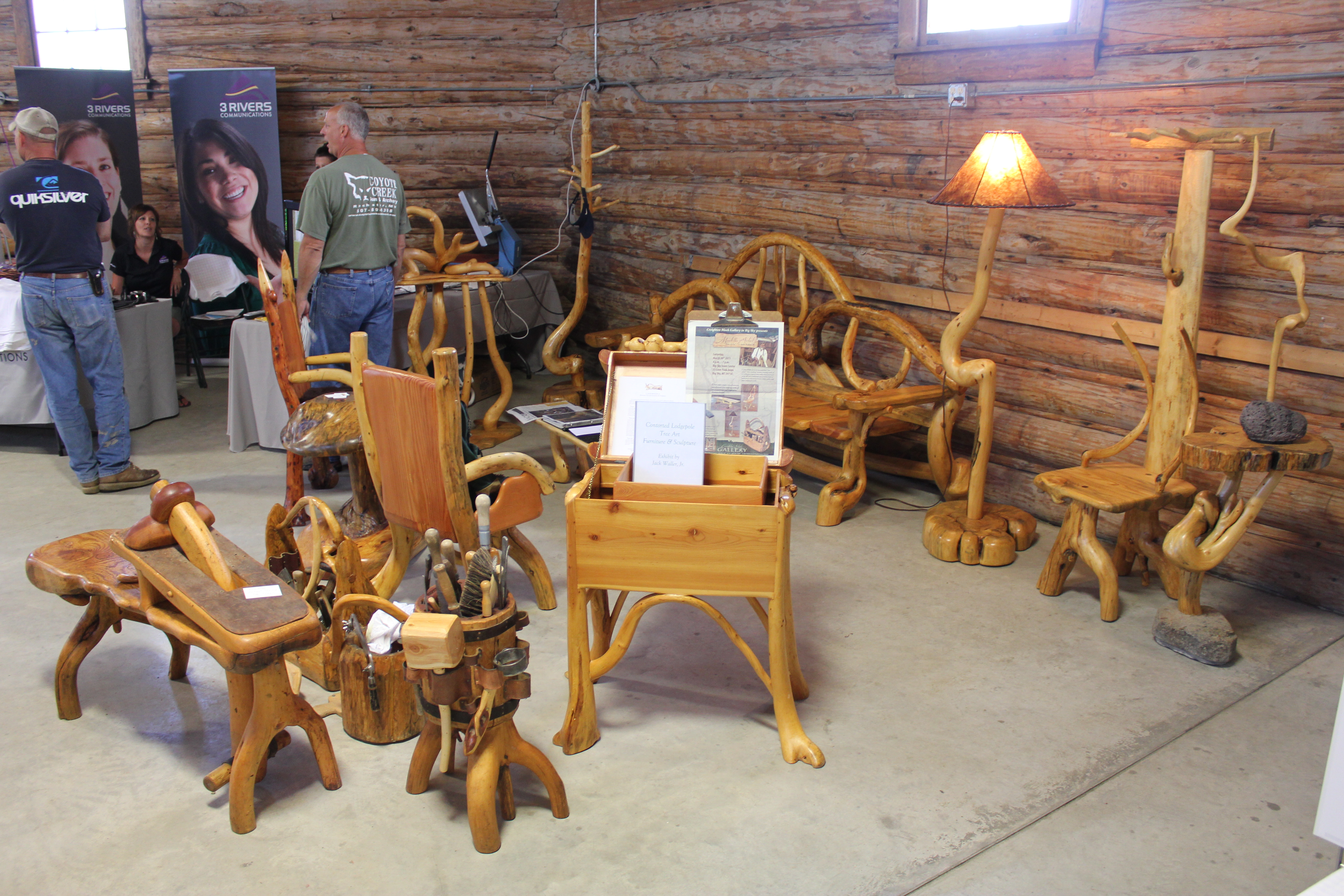

Forty-two. Exhibit at the 2014 Madison County, Montana, Fair

FAIR--Blog #5

FAIR--Blog #3

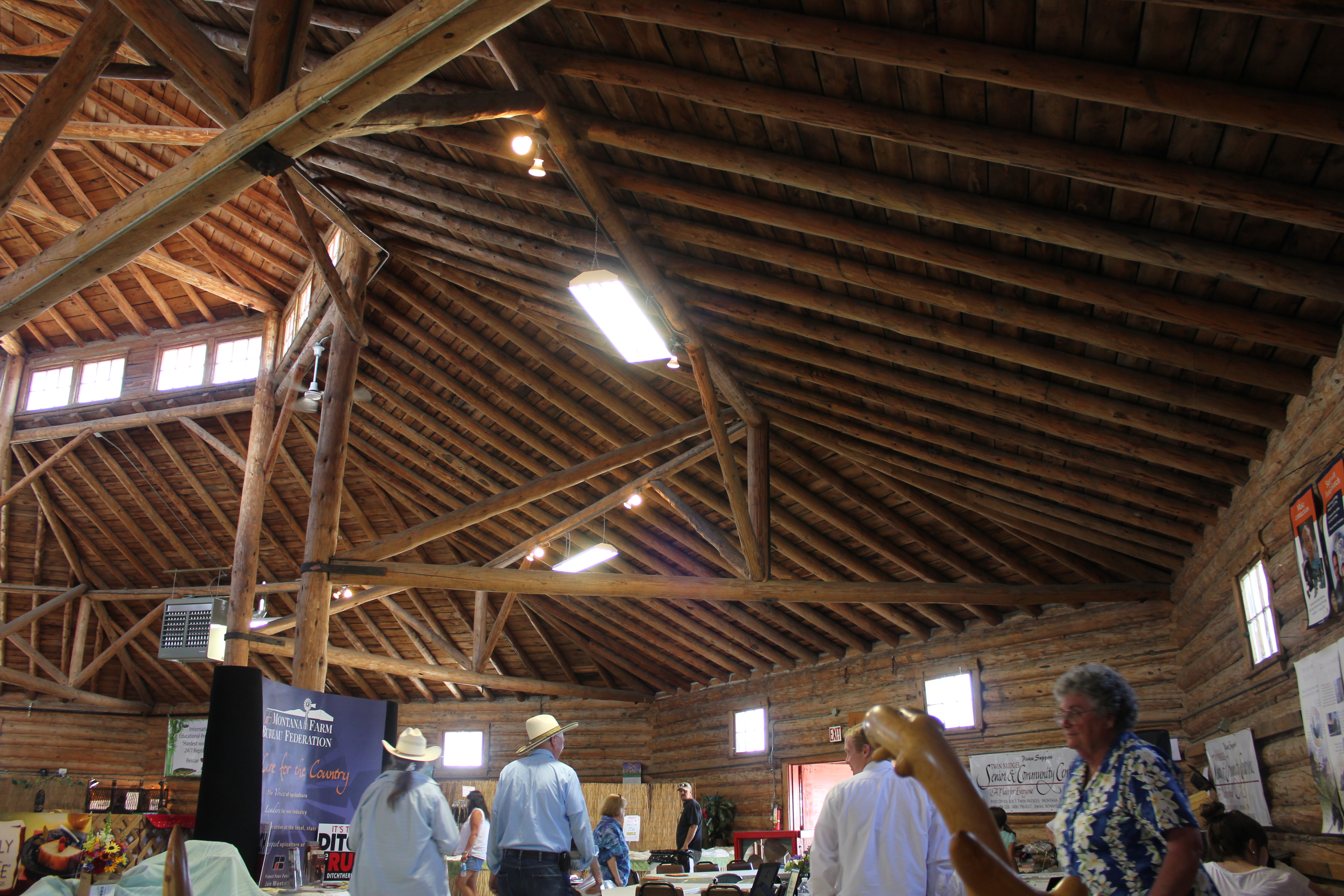

An important reason for my wanting to exhibit at the fair was/is my admiration for the octagonal log architecture of “The Pavilion.” Another reason is that our three families all live just across the Beaverhead River from the fairgrounds. Yet another reason is that the booth space was large enough to allow a collection of 11 pieces of furniture, as well as my shaving horse, tote box, and tool caddy.

I planned the exhibit as an educational display–about the trees, the designs, and the workmanship. It is yet another of my tributes to the contorted lodgepole pine trees.

It’s very likely that this will be my last public display, especially since we’re now thinking of furnishing our Virginia City home with these irreplaceable pieces of tree art furniture and sculpture.

I’m pleased that spending this time with the display has renewed our appreciation of the many artistic values embodied in each piece, and in the collection as a whole.  It’s true that the pieces interact with each other, and that the whole display seems greater than the sum of its  parts.

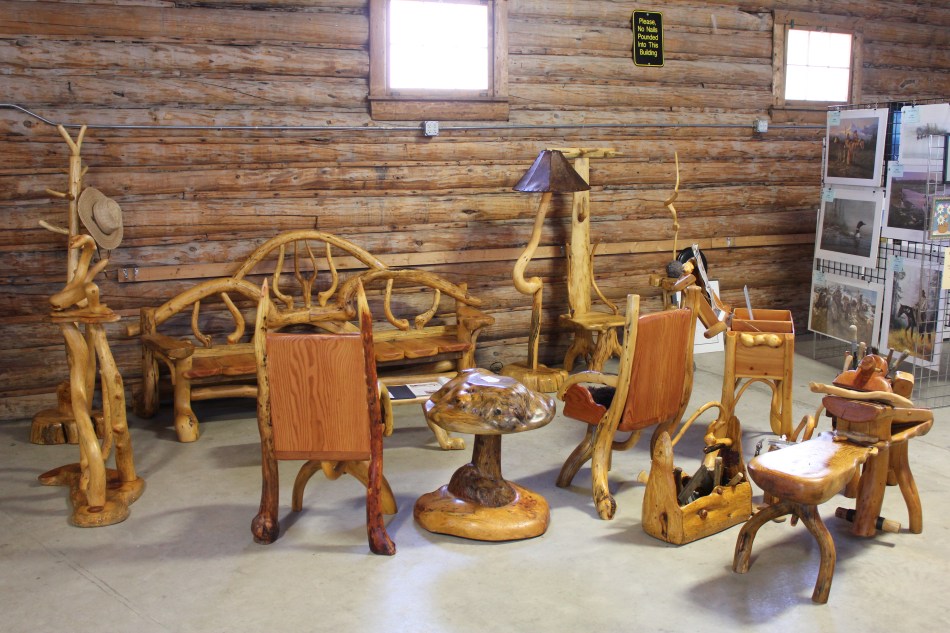

The entire collection represents thousands of hours of work–from the hunting/gathering of the trees, to the different stages of assemblage, cosmetic detailing, to the finish coats of varnish or wax–plus all the indirect labors, including storage, handling, marketing and sales.

IMG_5189 IMG_5193

Forty-one. Foyer Tree Art Furniture Set

I’m putting together an eight piece set of entryway/hallway/foyer furniture:  bench, end table, coffee table, two arm chairs, two hall trees, and a floor lamp.  Our plan is to exhibit the entire set during the Madison County Fair, this August in our home town of Twin Bridges, Montana.  The exhibit hall at the Fairgrounds, called “The Pavilion”, is an impressive octagonal log building.  And, I still imagine how good, and appropriate, the set would look on exhibit in the lobby of Old Faithful Inn in Yellowstone Park.

The bench, two arm chairs, one of the hall trees, and the floor lamp have already been documented in this blog.  I’m now in the finishing stages of making the end table, coffee table, and second hall tree.  I probably won’t photograph the entire set until it is on display at the Fair, unless some of the pieces sell at the Ennis Arts Festival, which happens earlier in August, before the County Fair.

Over the next six weeks or so, I’ll update and revise this post.  For now, here are some photos taken in our greenhouse workshop.  I’ll add notes or captions as time allows.

I also want to share that this blog just passed the 10,000 views mark.  That doesn’t compare with the volume of Youtube video or Twitter posts that go viral, but it impresses me nonetheless!

After scribing a level line off of the floor with the hall tree upright, I had to cut a thin, tapered slice off of the bottom.  I had to cut around the countersunk lag screw.

The base of the hall tree is made from a section of a lodgepole pine tree trunk located at ground level when the tree was standing.

IMG_4863

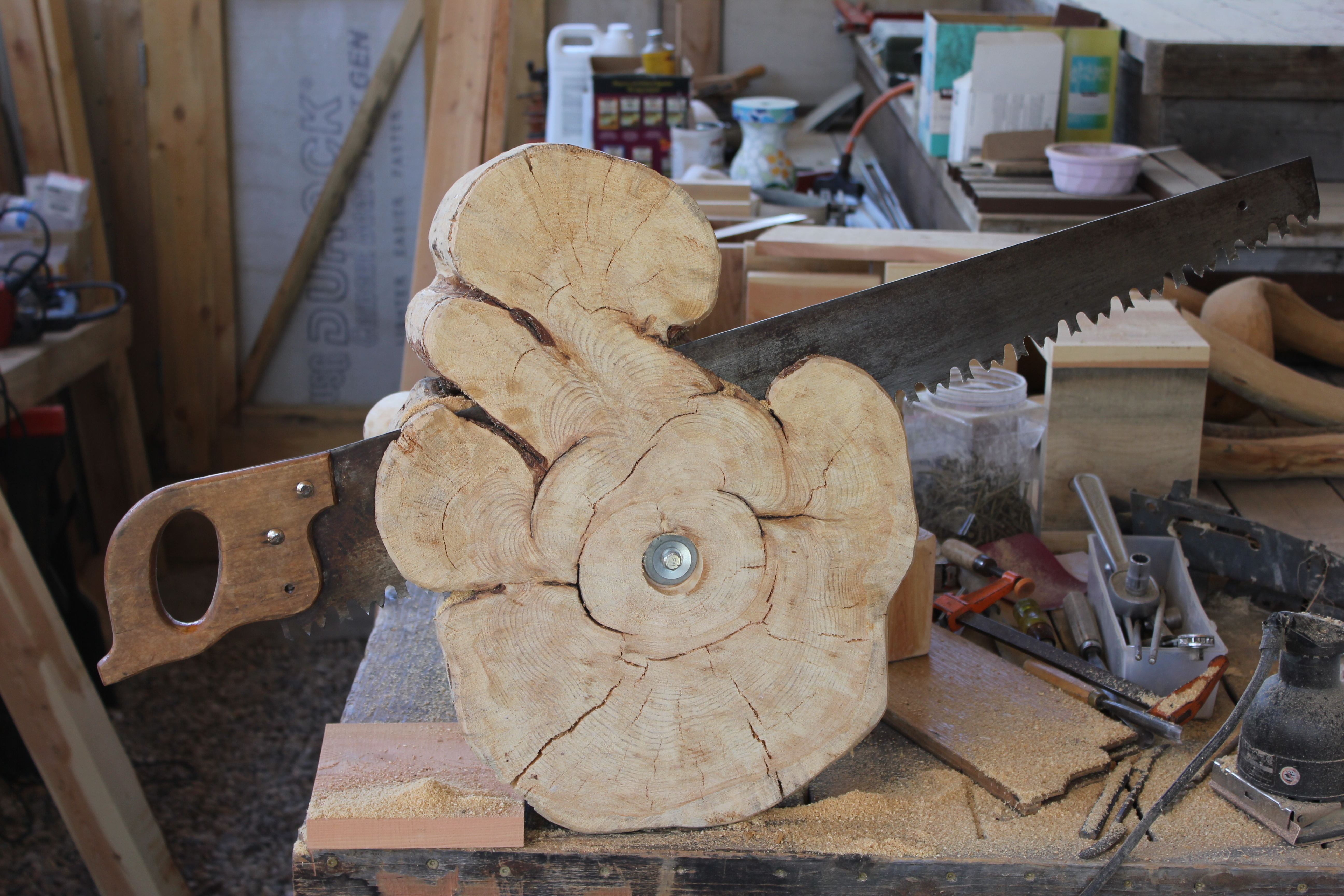

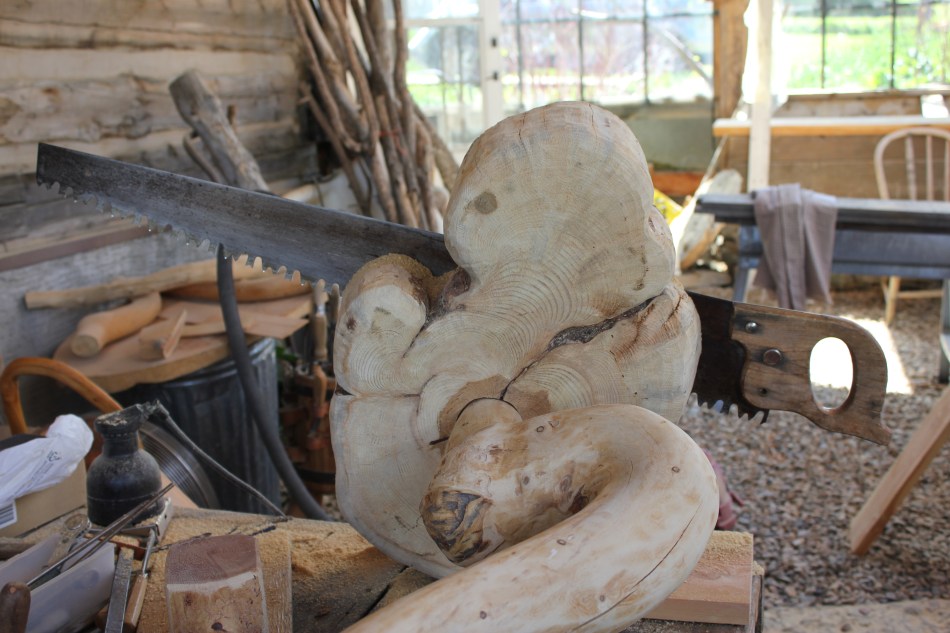

Cross cutting the base with a one-man logger’s saw, cutting to a level line that was scribed off the floor while the hall tree was standing upright.

IMG_4865

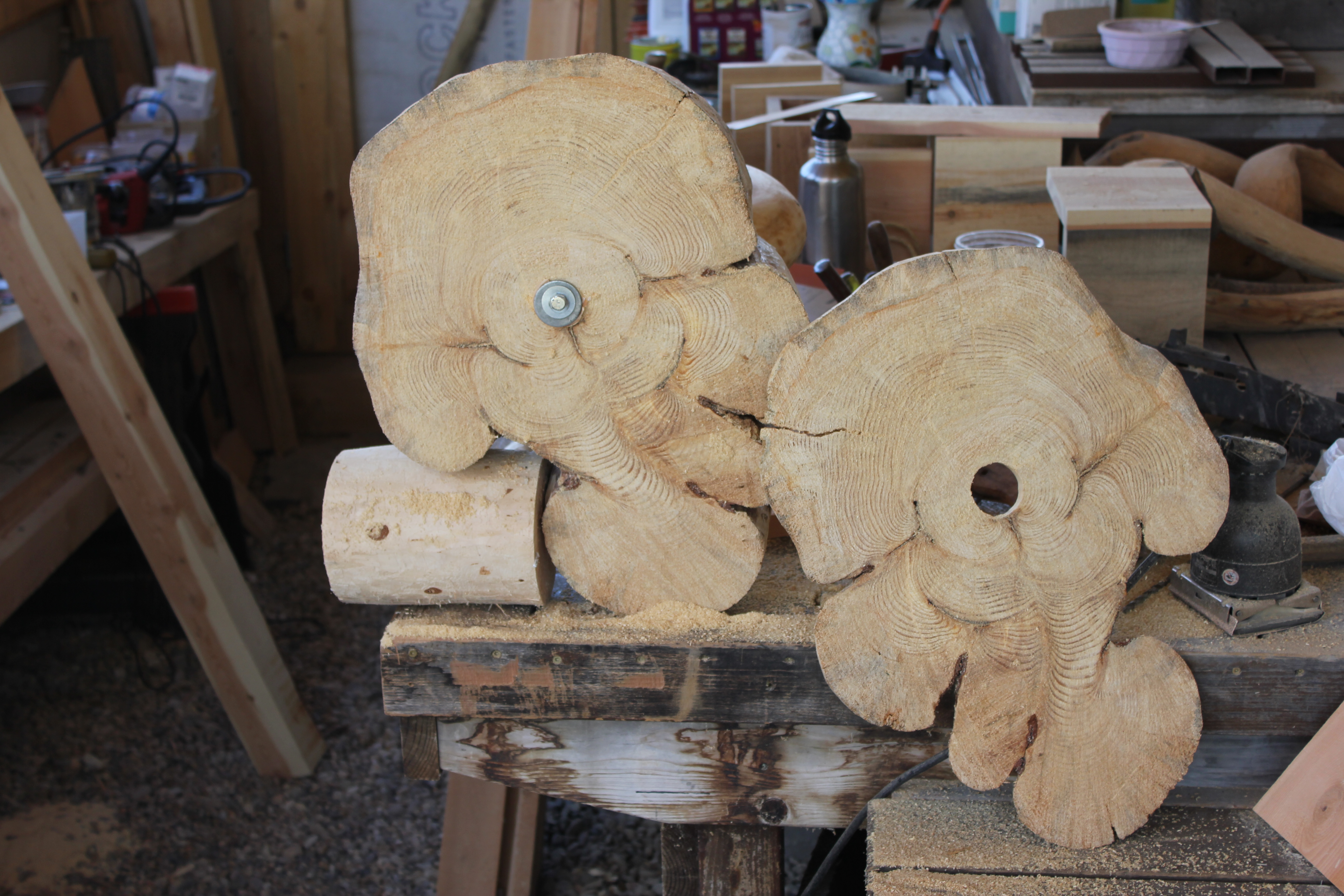

The thin, tapered slice alongside. I had to remove the 8″ lag screw and rout a new countersink hole.

IMG_4867

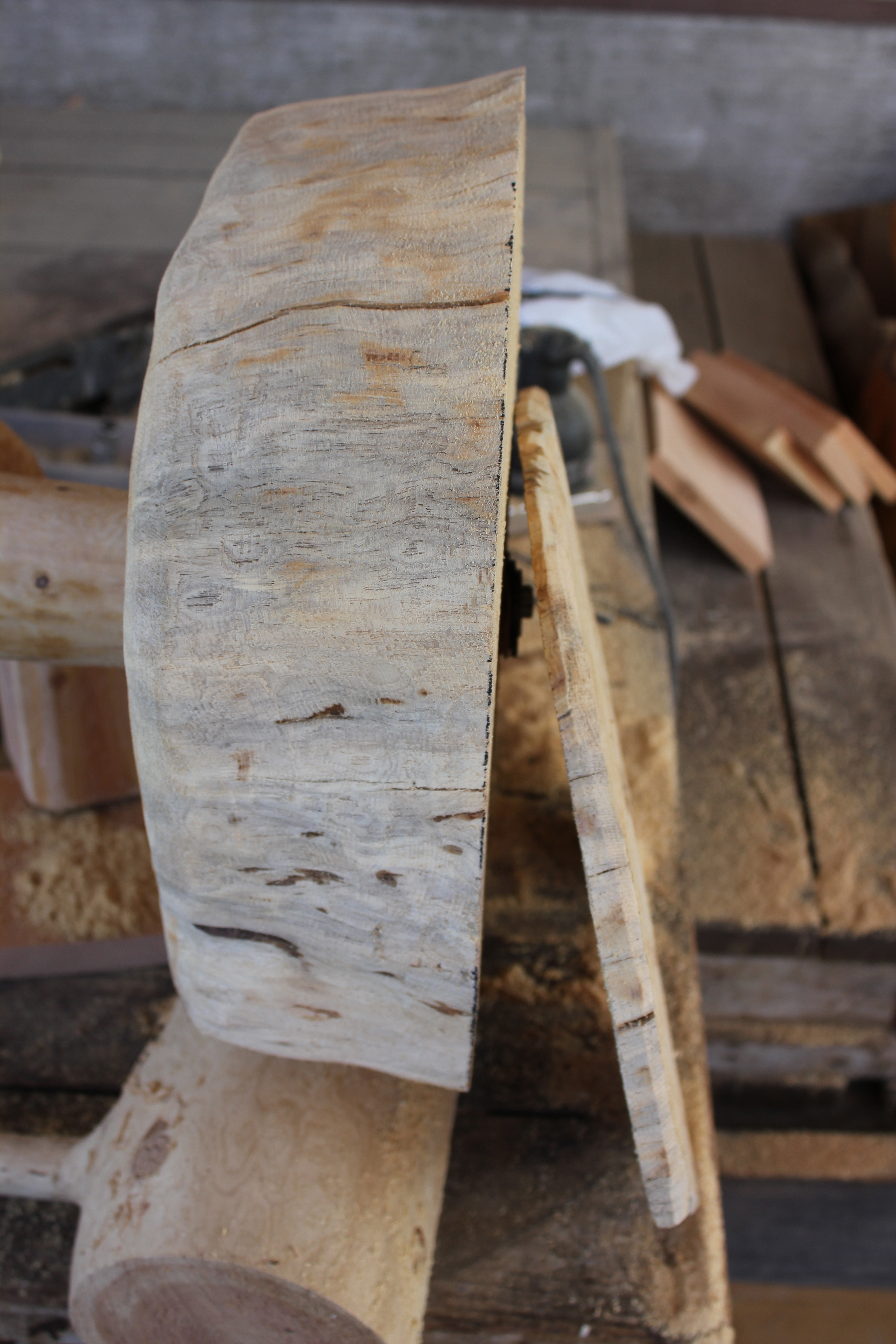

A side view showing the thinness of the removed piece and the flatness of the hall tree base. It was a tedious sawing job, but I couldn’t think of a better, less risky, way to do it.

IMG_4868

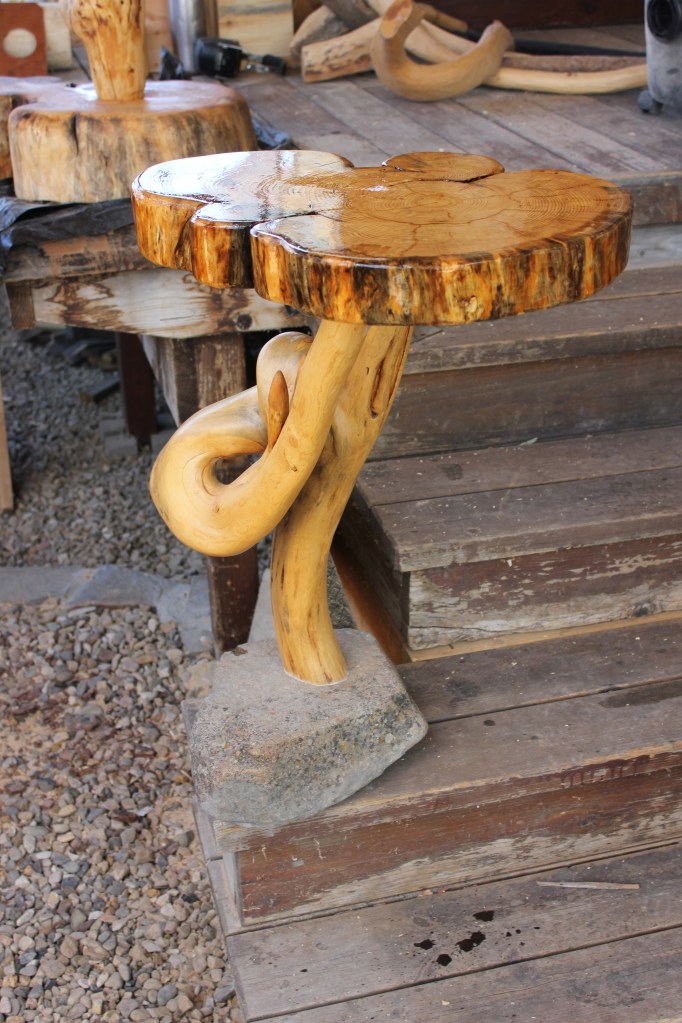

Here’s the end table. Its top matches the hall tree base. I began making this piece almost 20 years ago. Its post is an incredibly contorted lodgepole pine tree trunk. The base is a granite stone. I will soon photograph the underside of the table top with its diagonal forked supports and inlaid steel bar.

IMG_4869

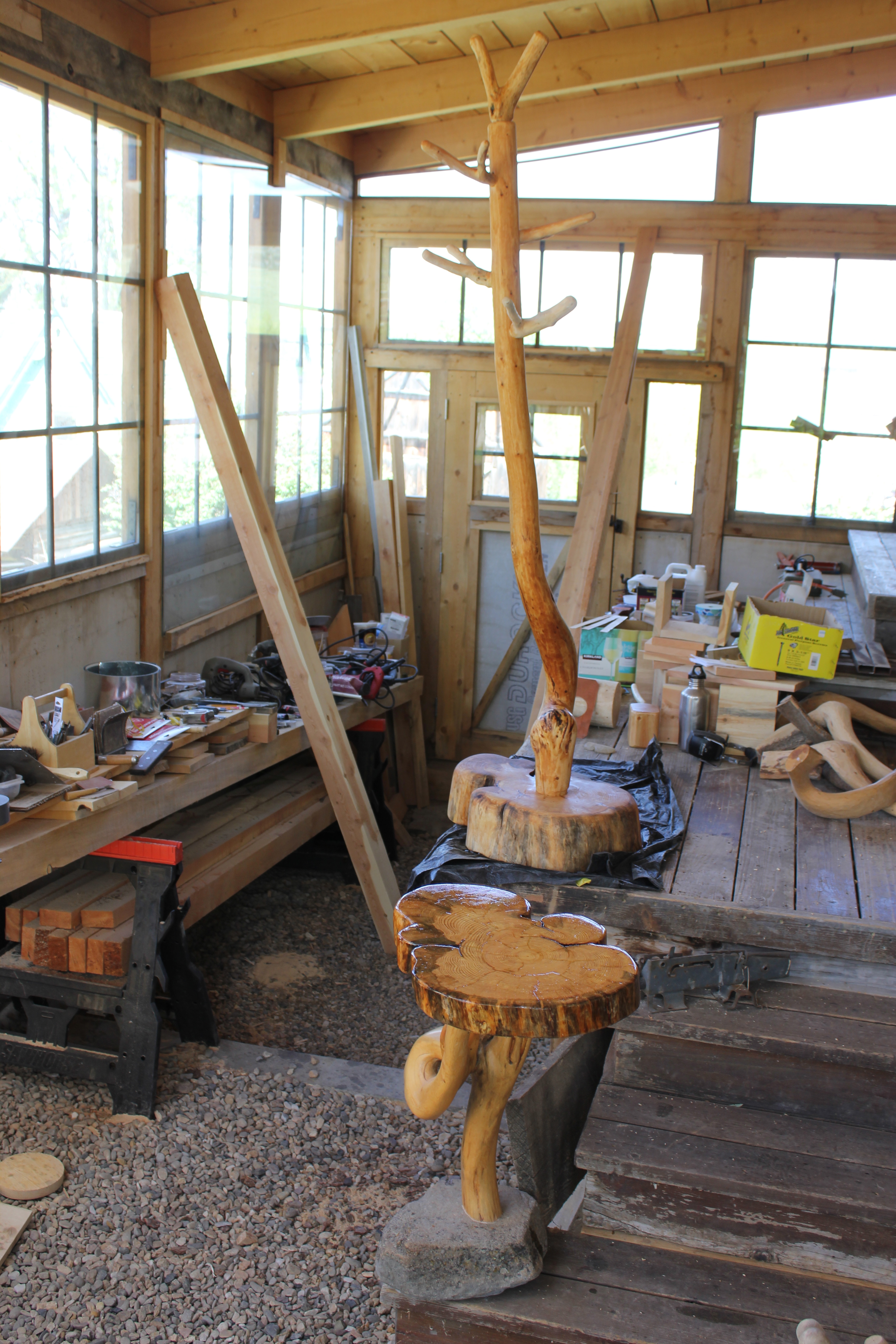

At this stage, I’ve inserted the five forked hanger pegs in the hall tree, using round mortise and tenon joinery, glued and reinforced with concealed wood screws.

IMG_4870

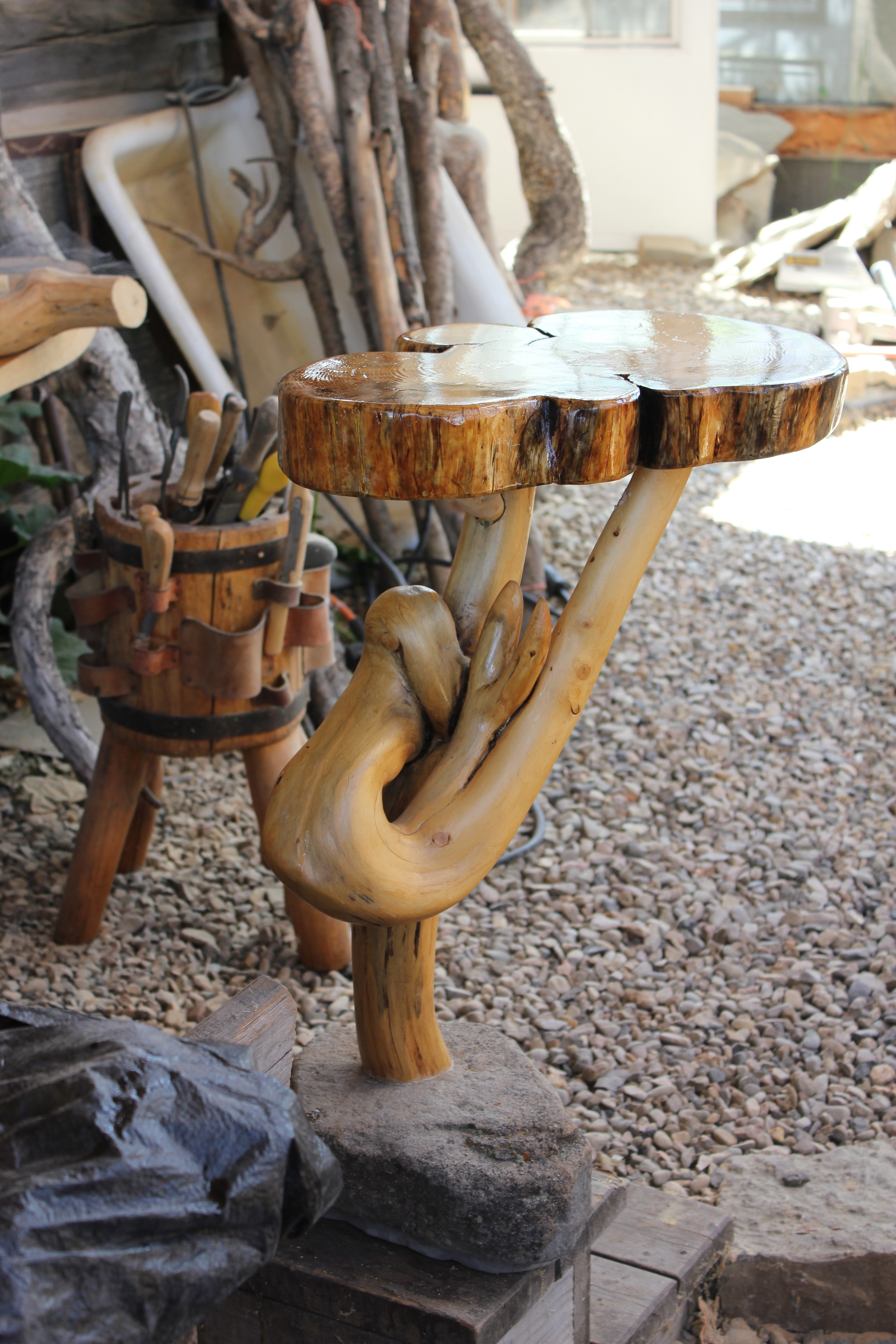

Here’s another view of the end table that better shows the contortions of the tree trunk post. Also, notice the tool caddy in the background.

IMG_4879

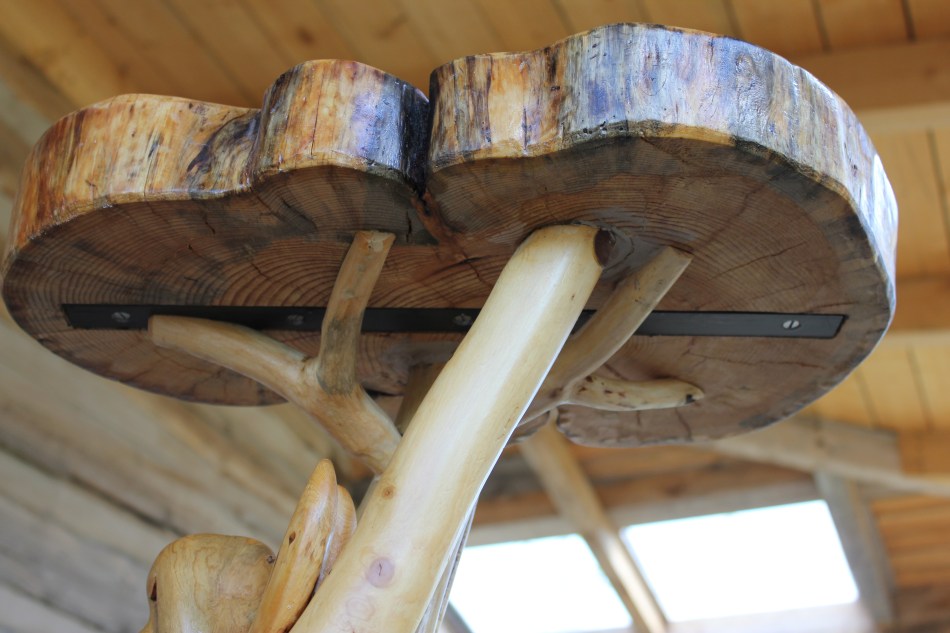

The ends of the two tree trunk posts were shaped into cylindrical tenons joined to matching mortises in the table top. The joints were reinforced with hardwood dowels. For added table top support, I drilled holes into the two posts as mortises and shaped the ends of two forked pieces to serve as diagonal braces. The forks were glued, inserted into the posts, and screwed to the table top.

IMG_4880

The first work I did on the underside of the table top was to inlay and screw down a flat piece of 1/4″ steel, to strengthen the top in the case someone lifts the whole piece by the top.



Thirty-nine. “Old Faithful Inn’s Architectural Tree Art”

The following is the text of a brief article I wrote as an introduction, a first publication in an expanding series of articles and essays written as a tribute to the remarkable “Lodgepole” pine trees.  My ultimate goal is to write a book, illustrated with photographs, titled Contorted Lodgepoles: A Poet’s Tribute.  One chapter of that book will be an essay that expands on my observations about architect Robert Reamer’s “architectural tree art.”

Here’s the photograph that accompanied the article.

IMG_3791

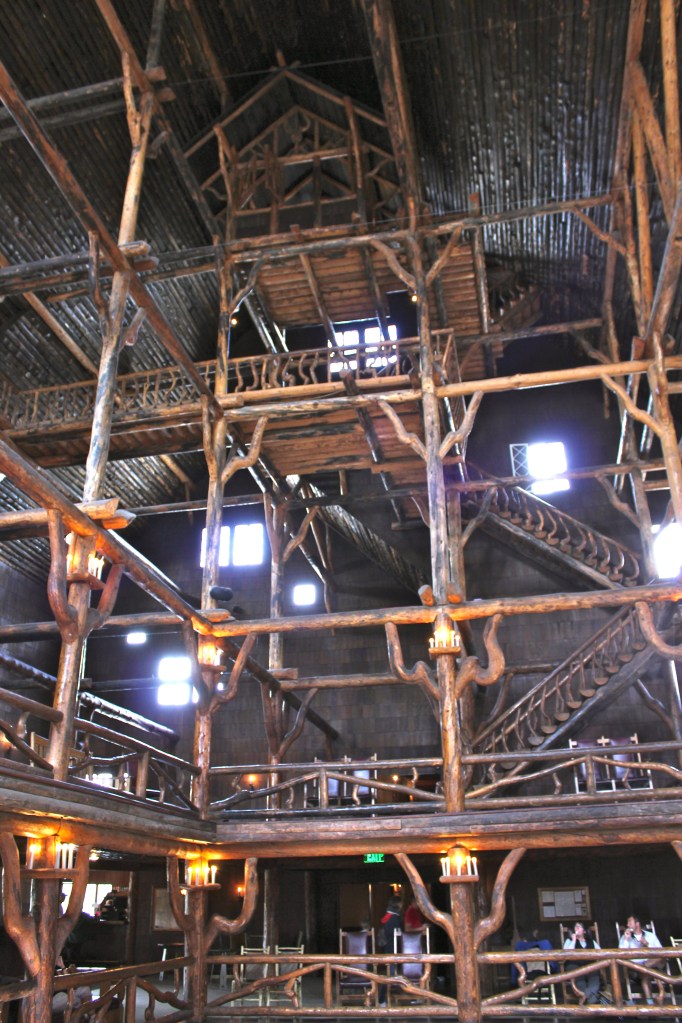

This photo dramatically illustrates the “architectural tree art” of the Inn’s lobby. Architect Reamer combined both the ideal and the deviant “Lodgepole” pine tree trunks. The photo also illustrates the elevations, processions, and ascensions that I mention in this article. The Crow’s Nest is “nestled” in the pinnacle of the vaulted ceiling. What a masterpiece it is …! (Jack Waller photo)

Explore Big Sky
August 8—22, 2013 issue, “BACK 40”

“Old Faithful Inn’s architectural tree art”

By Jack Waller, Explore Big Sky Contributor

I’m one among a multitude of admirers of Yellowstone National Park’s Old Faithful Inn.

Designed by architect Robert Reamer in 1903, the inn is a monumental example of rustic architecture. For well over a century, it’s been a destination for millions of visitors, and the voluminous subject matter of devoted scholars, historians, writers and photographers.

One essential element of its rustic appeal is what I call “architectural tree art,” the extensive use of lodgepole pine tree trunks both on the building’s exterior and interior.

Reamer’s design, especially in the lobby, combines the shapes of both the straight and the contorted types of the species, Pinus contorta var. latifolia. The magnitude of Reamer’s structural and decorative uses of these trees evokes amazement, awe and a sense of architectural mystery.

In the late 1980s, three seminal events led to my becoming a tree art furniture maker. I moved to southwest Montana to live in a lodgepole pine forest; I visited Old Faithful Inn for the first time; and I read Craig Gilborn’s Adirondack Furniture and the Rustic Tradition.

“Tree art” and “tree art furniture” are terms I first learned from Gilborn. For the most part, they refer to the use of recognizable tree shapes in the design and construction of rustic architecture and in furniture making, respectively.

In July 2012, after more than 20 years of making tree art furniture from contorted lodgepole pine trees, I took a private bellhop’s tour of the upper levels of the inn’s lobby.

Public access was closed in the late 1940s for safety reasons, due to the large numbers of inn visitors. Now twice a day, a group of four people can, by reservation only, accompany a bellhop to the inn’s rooftop either for the morning or evening raising or lowering of flags.

Ascending to the lobby’s upper levels, we arrived at the pinnacle of the lobby’s  vaulted ceiling, and arrived at the crow’s nest.  From its great height in the peak of the vaulted ceiling, it overlooks all the interior architectural tree art – the lobby floor, the surrounding column-brace-beam frameworks, and the lower balconies with their interconnecting staircases, catwalks and platforms.

A small, enclosed, cage-like structure, the crow’s nest epitomizes the inn’s architectural tree art. As a tree artist, I recognized the recurring motifs that I’ve identified in my own work: swan necks, tuning forks, alpenhorns, shepherd’s crooks and arches. I also saw there the mastery of the carpenters/tree artists who executed these elaborate designs.

The crow’s nest door is positioned near an exit staircase, with another door leading outside and up to the summit of the inn – a long, rectangular roof platform with panoramic views of the Old Faithful geyser basin.

During the tour I realized an essential element of Reamer’s plan was to provide all guests with the experience – both physical and psychological – of elevation, procession and ascension, all culminating on the rooftop.

Thirty-eight. The bench: my artist’s statement

(I originally posted this as a draft on July 22, 2013, which preceded post “Thirty-nine.”  I decided today to go ahead an publish it.)

The architectural tree art of Old Faithful Inn was an original inspiration for me in the late 1980s.  Since then I’ve made  tree art furniture, sculpture, and architectural details, using contorted lodgepole pine trees.

From its beginning, I designed and made this bench with Old Faithful Inn in mind.  As tree art furniture, its design echoes the architectural tree art of the Inn, especially that of the lobby’s log framework bracing, balconies, staircases, catwalks, and the “Crow’s Nest.”

In July of 2012, I took a private bellhop’s tour of the upper levels of the Inn’s lobby for the first time, ascending to  “The Crow’s Nest,” and out onto the flat roof’s viewing platform.  I repeated this privileged and inspirational tour in June of 2013.

These tours deepened my appreciation of the artistry of architect Robert Reamer’s designs and of the craftsmanship of those he employed to execute them.  The tours also increased my sense of connection, as a tree art furniture maker, to the Inn’s architectural tree art and to the contorted lodgepole pine trees. And they also evoked a desire to exhibit my tree art furniture in the lobby of the Inn, for public use as seating, portrait photography, and to serve other  educational values.

Lastly, the bench was made in conjunction with my writing of an essay titled  “Architectural Tree Art of Old Faithful Inn”, for magazine publication and to later become a chapter in my forthcoming book length manuscript, Contorted Lodgepole Pines: A Poet’s Tribute.

“Tree working” Processes

I began the bench in December of 2012 and “finished” it in June of 2013.  The various phases of the project are documented, in detail, on this blog.

Components

The design includes 19 individual, naturally grown, lodgepole pine tree trunks (no limbs or branches), and five tree art “motifs”:  swan neck, alpenhorn, arch, ox-bow, and tuning fork.

I chose the individual trees and combined their shapes to serve both structural and decorative purposes.  The overall design emphasizes the individual “character” of each tree, while  also achieving a symmetrical pattern and functional unity.  The natural “defects”—cracks, gnarly grain patterns, insect activity, discolorations—are essential rustic details of tree art furniture.

Joinery

The most-used joints are round mortise and tenon, saddle notch, and mate cut edge-to-edge butt joint (on the seat slabs).  After gluing and clamping, most of the joints were reinforced with either wood dowels or wood screws.

Detailing and Finish

The project included tedious and time-consuming processes of cosmetic detailing:  shaping of joints; chamfering of edges; filling holes and cracks; scraping and sanding away of coarse tool marks, wood filler, and excess glue.  Stain pens were used to blend colors and to conceal cosmetic flaws.

I first applied two coats of penetrating natural Watco Danish Oil.  The final finish is  two top coats of satin polyurethane.

Specifications

The bench is 8 feet long overall, with a backrest height of 46 inches.  The slab wood seating area is 71 inches wide between the armrests.  I estimate its weight at about 200 pounds.

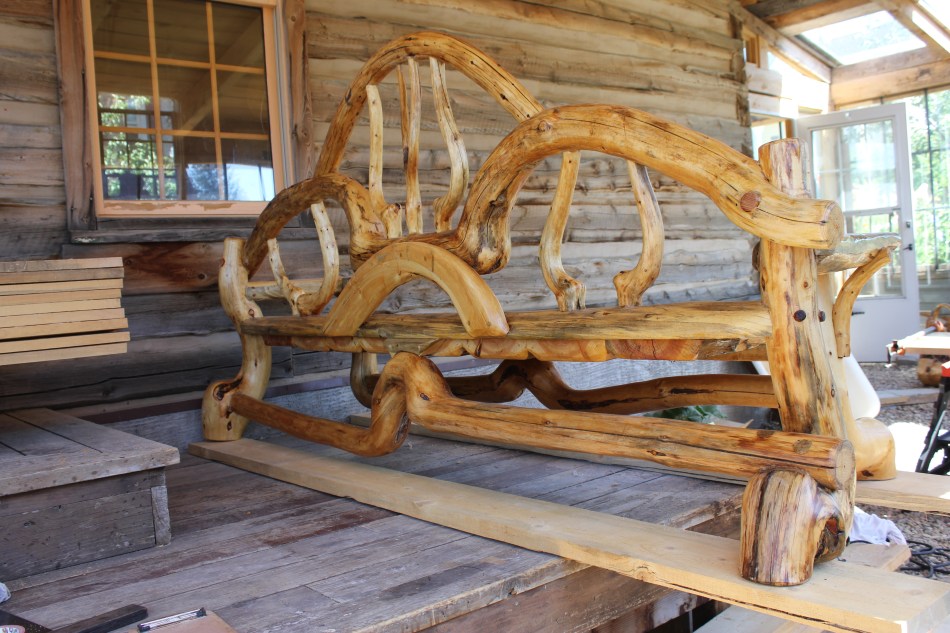

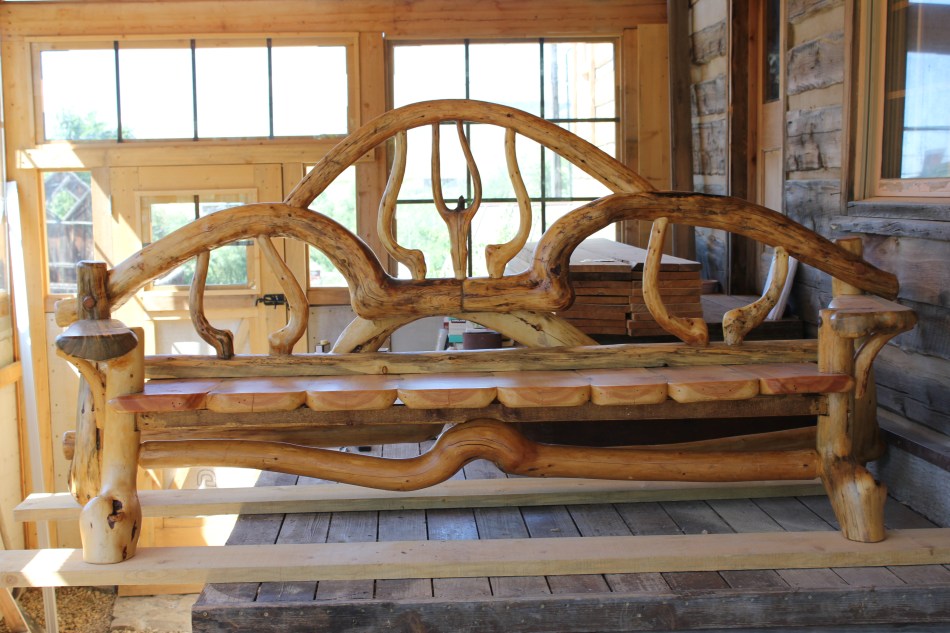

Here are front and back views of the bench as it sits in our greenhouse-to-be …

______________________________________

IMG_3979

IMG_3976

Thirty-seven. Getting close …

IMG_3962

After too many hours of fixing its cosmetic flaws, the bench now has two coats of penetrating Watco Danish oil (natural) and two top coats of satin polyurethane.

IMG_3960

I wanted to preserve and enhance all the varied natural colors of the individual trees, but I did use some stains, especially Minwax stain pens, to conceal tiny blemishes and blend in wood fillers.

IMG_3958

The horizontal pencil lines on the bottom of the two legs are guideline for a final trimming of the leg. Each of the bench’s four legs was marked to the same height from the floor by using a measuring block.

IMG_3957

In this 3/4 rear view, I like the repeated and stacked use of five arched shapes, combining three tree trunk motifs–“ox-bow,” “C arch,” and “swan neck.”

IMG_3959

I took this photo as a close-up, primarily to show the variety and colors and grain flows. The leg and armrest are from beetle-killed trees.

IMG_3961

This is the better of the two leg and armrest saddle notches.
